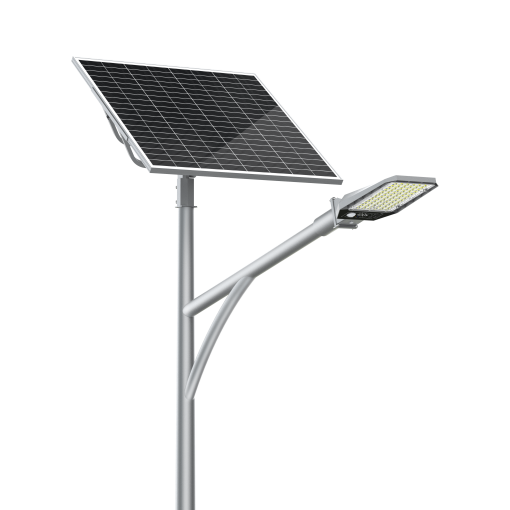

Split Style Sensor Solar Light
Price range: $1,595.00 through $2,310.00

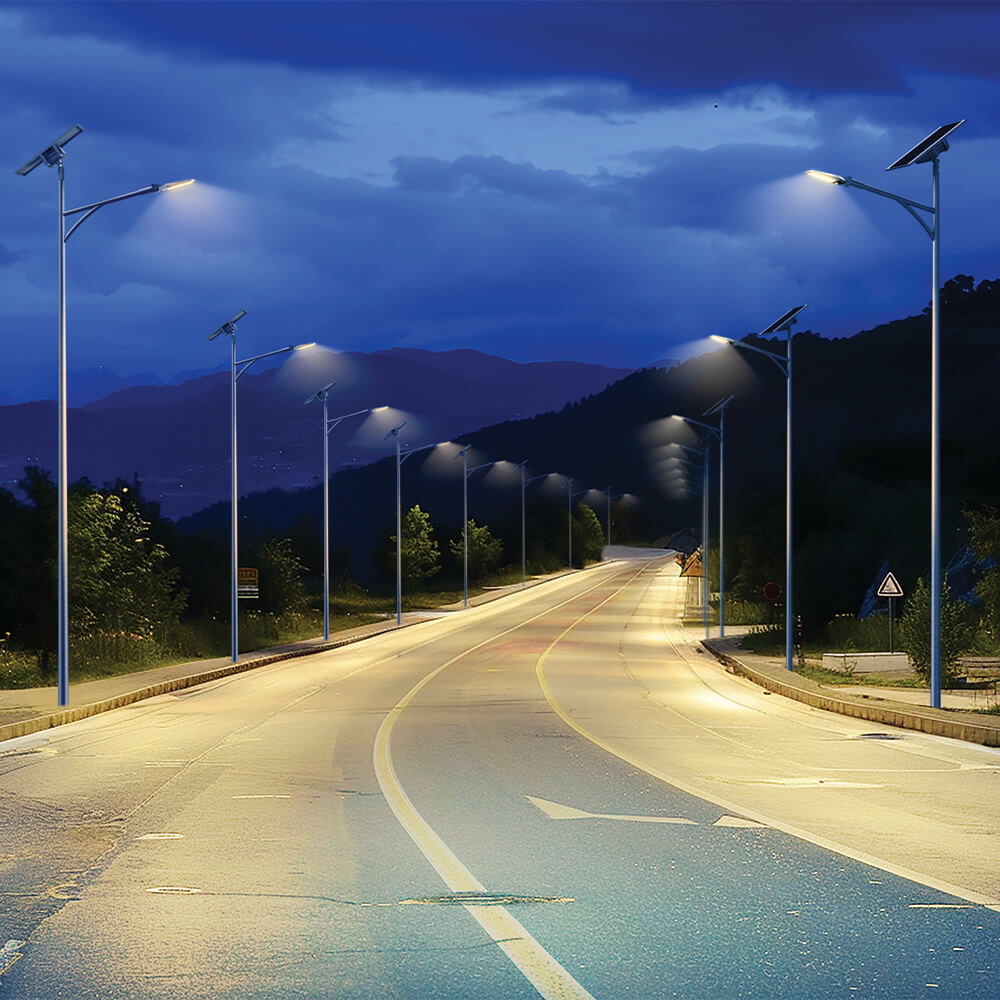

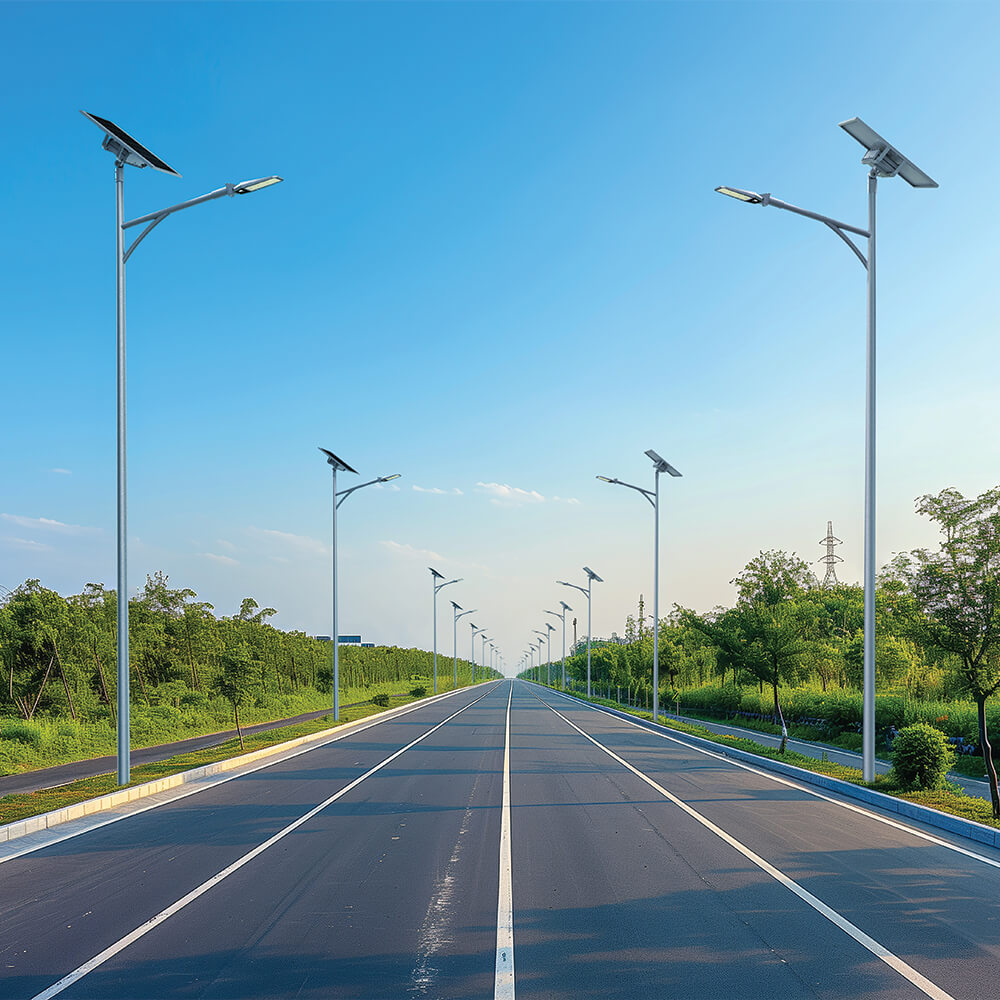

The Split Style Sensor Solar Light is a reliable, energy-efficient street light suitable for illuminating roadways, pathways, carparks, and the like. This light is simple to install and features an adjustable solar panel as well as a display screen that shows the light’s state of charge and lighting mode.
All Star 8 solar lights maximise battery life and charge life because they incorporate adaptive lighting, variable frequency, and temperature control patented technologies.
Features:
✓ Easy installation
✓ 3 lighting modes
✓ 3-year product warranty (battery included)
✓ Rain sensors (change light’s colour temperature to improve visibility in rainy weather)

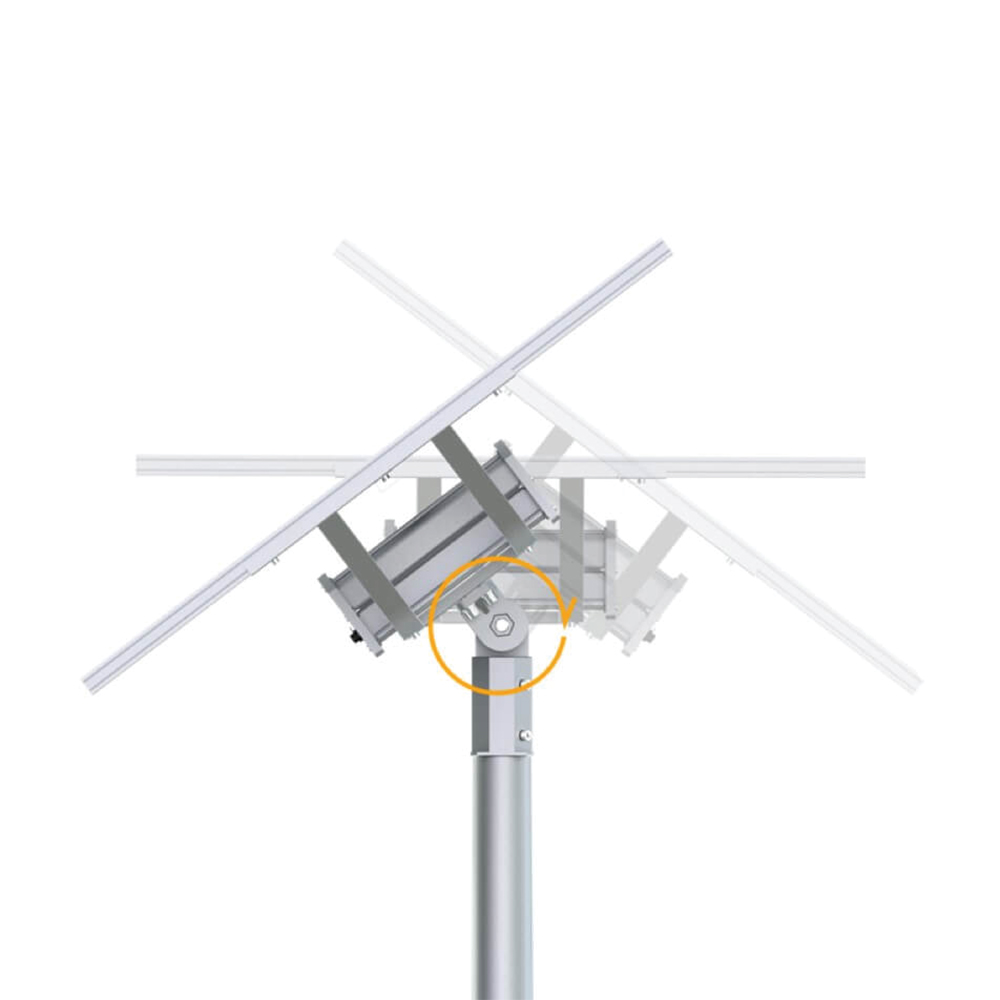

✓ Adjustable solar panel
✓ PIR motion/proximity sensor
✓ IP65 water and dust proof rating
✓ Display screen (displays lighting modes and charge percentage).
DOWNLOAD SPEC SHEETS

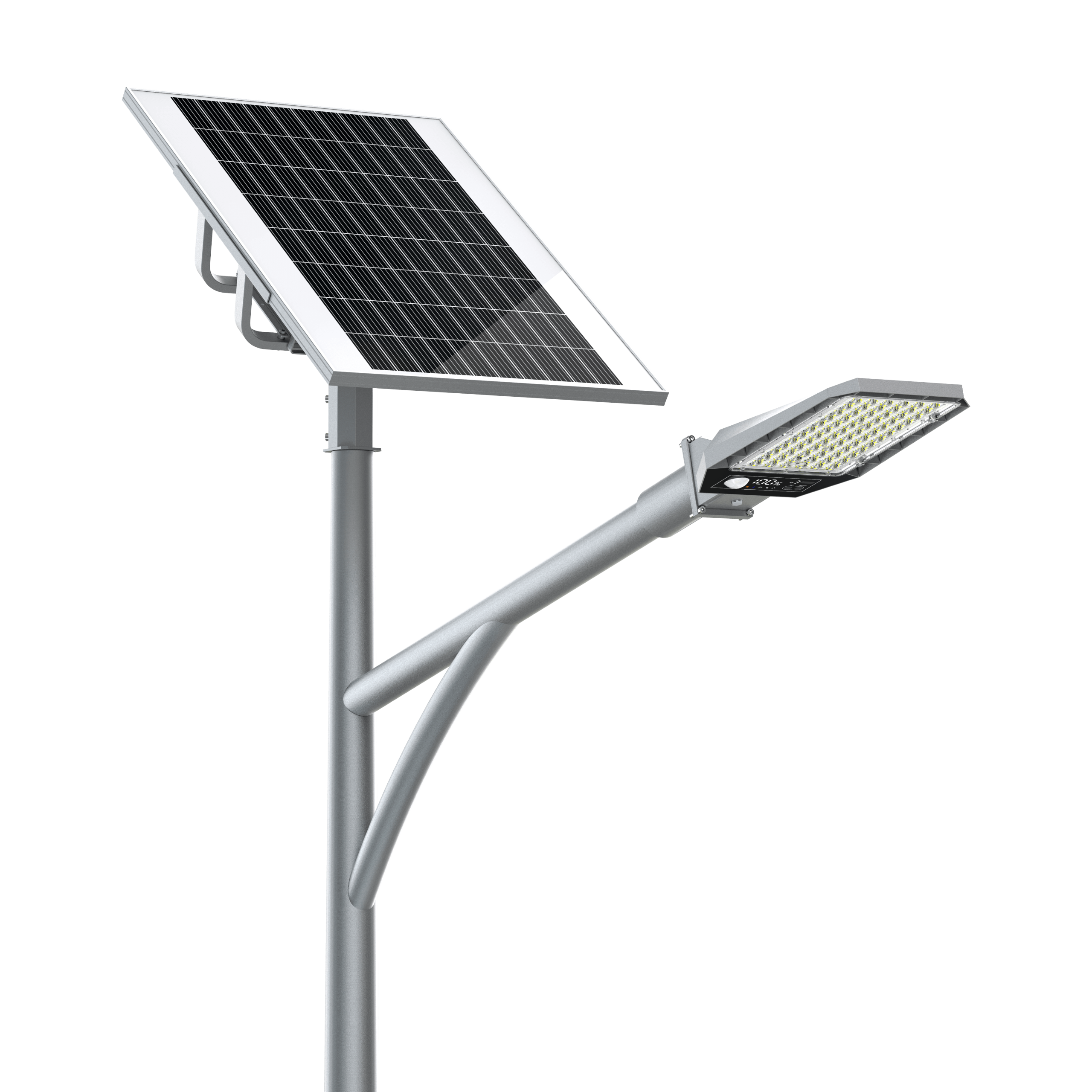

SPL-6K SPECS
| Lumens output | 6,000 Lumens |
| Efficiency | 230lm/W |
| Solar panels | Monocrystalline silicon, 22.8V/ 81W |
| Battery | 18V, 360Wh |
| Solar charging time | ≤ 5.1H |
| Charge life | 3+ days |
| Material | Aluminium + PC |
| IP rating | IP65 |
| IK rating | IK08 |

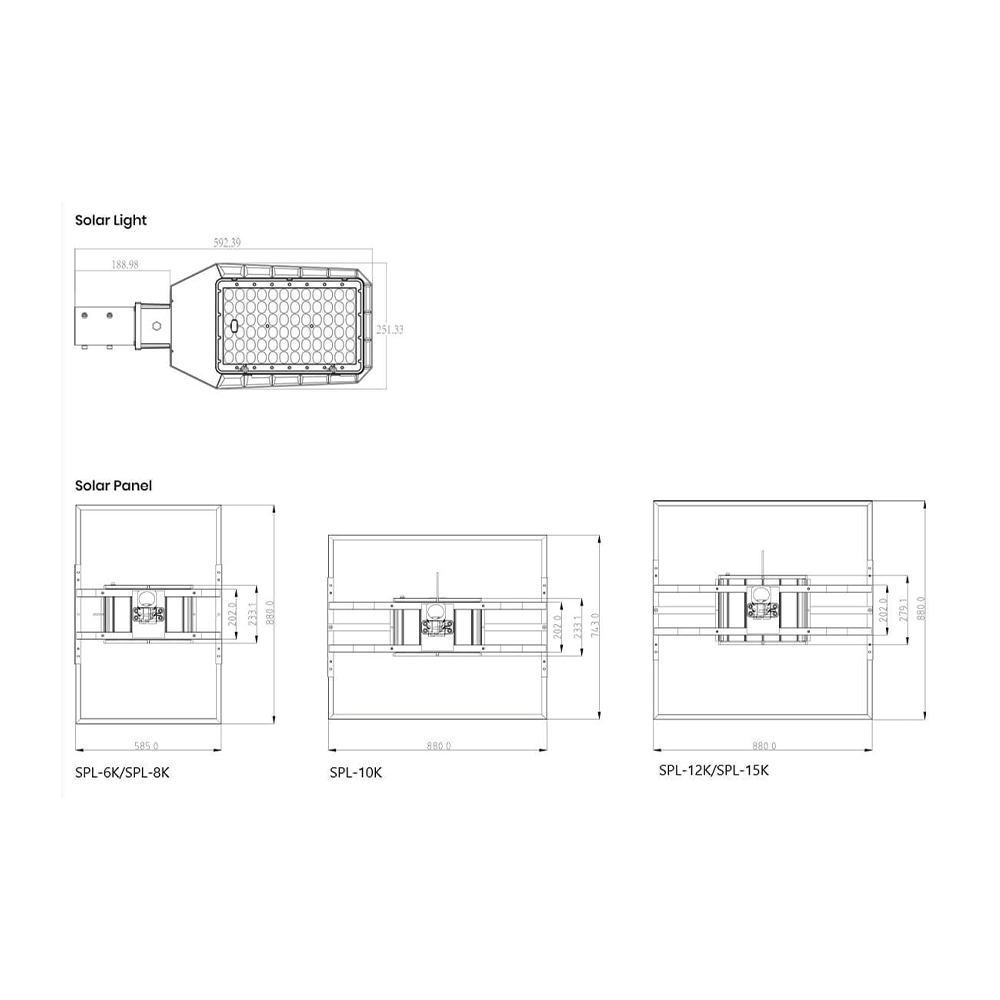

| Dimensions | Light head: 592.39 x 251.33 Panel: 880 x 585 |

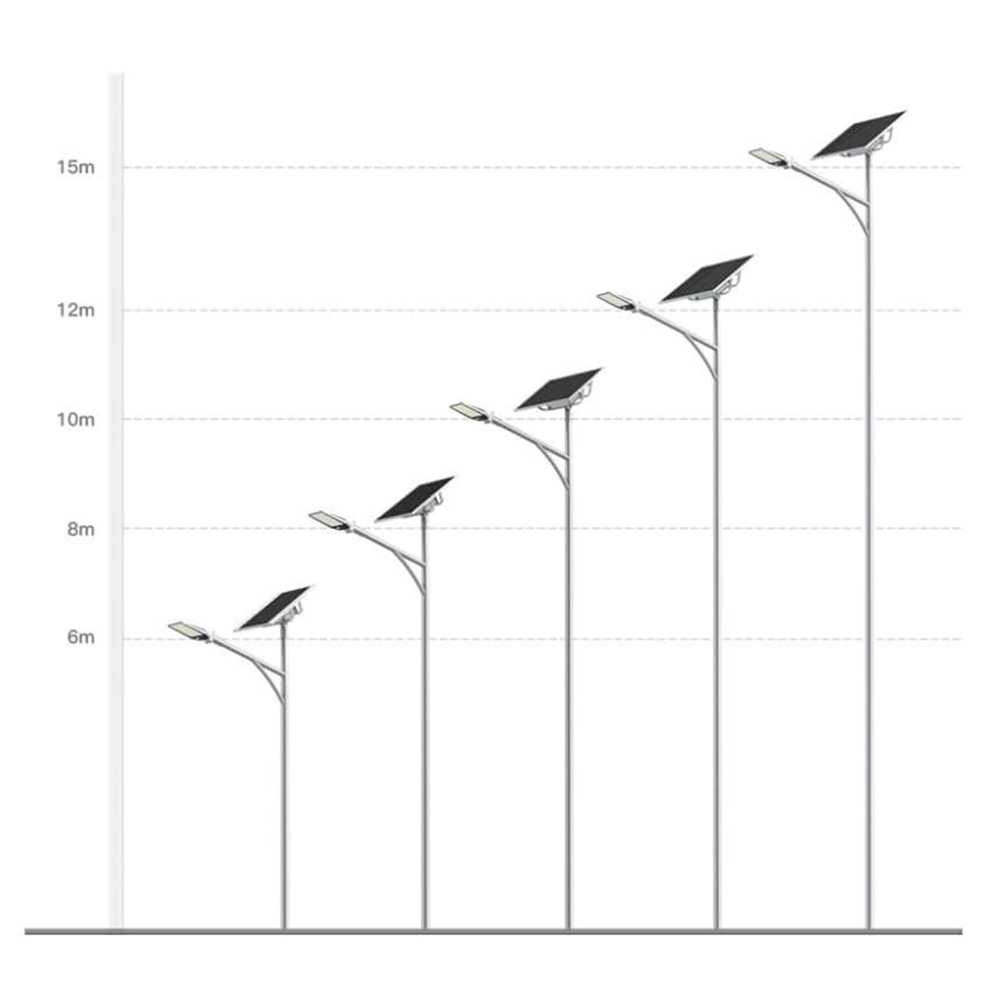

| Optimal mounting height | 6m |
| Weight | Main body: 13kg Light head: 2.7kg |
| LED colour temp | 3000K in rainy weather 5700K in dry conditions |
| PIR sensor range | 120 degrees, 12m |
| Remote control | Optional |
| Suitable pole or spigot diameter | 60mm OD |

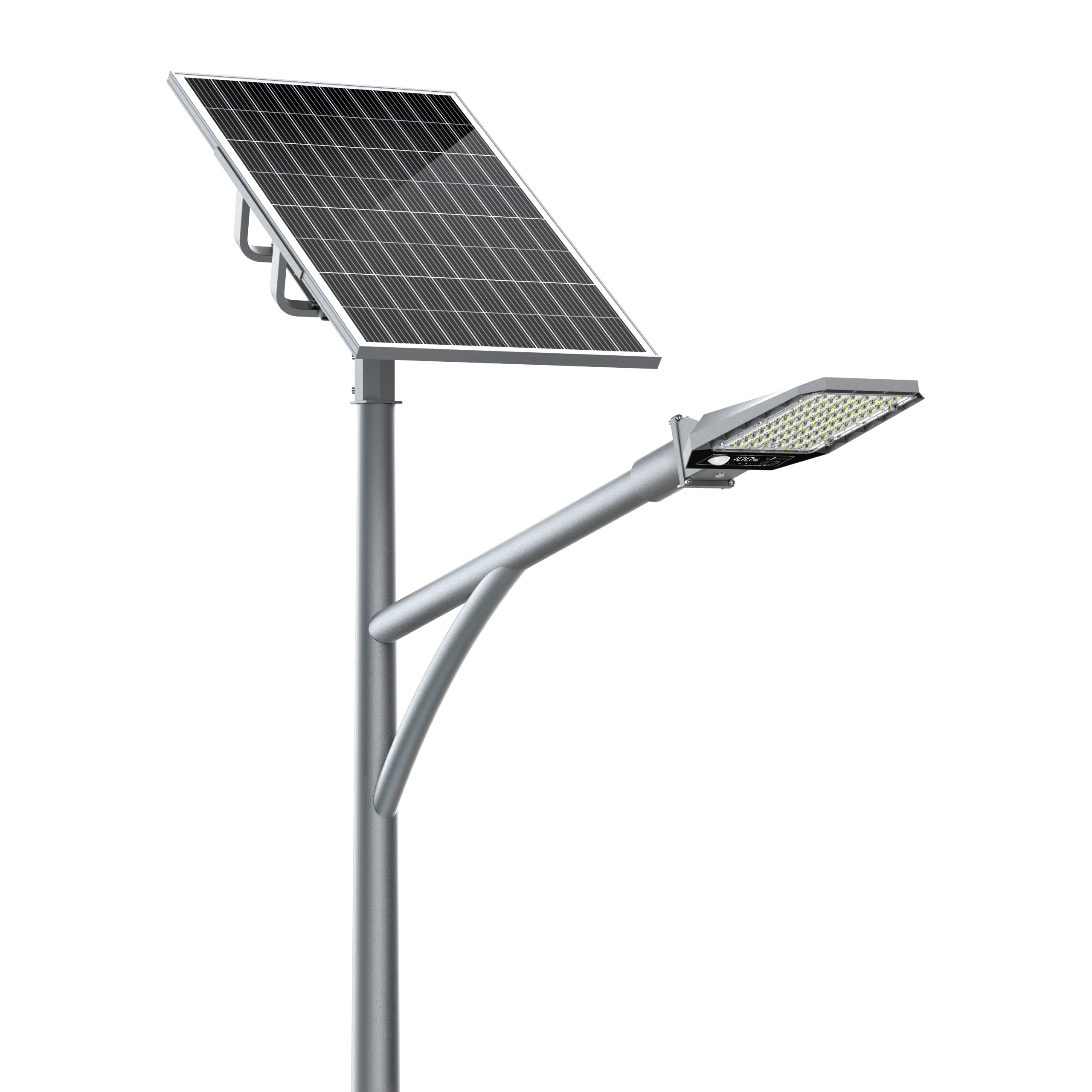

SPL-8K SPECS
| Lumens output | 8,000 Lumens |
| Efficiency | 230lm/W |
| Solar panels | Monocrystalline silicon, 22.8V/ 101W |
| Battery | 18V, 450Wh |
| Solar charging time | ≤ 5.1H |
| Charge life | 3+ days |
| Material | Aluminium + PC |
| IP rating | IP65 |
| IK rating | IK08 |
| Dimensions | Light head: 592.39 x 251.33 Panel: 880 x 585 |
| Optimal mounting height | 8m |
| Weight | Main body: 13.5kg Light head: 2.7kg |
| LED colour temp | 3000K in rainy weather 5700K in dry conditions |
| PIR sensor range | 120 degrees, 12m |
| Remote control | Optional |
| Suitable pole or spigot diameter | 60mm OD |
SPL-10K SPECS
| Lumens output | 10,000 Lumens |
| Efficiency | 230lm/W |
| Solar panels | Monocrystalline silicon, 22V/ 128W |
| Battery | 18V, 540Wh |
| Solar charging time | ≤ 4.8H |
| Charge life | 3+ days |
| Material | Aluminium + PC |
| IP rating | IP65 |
| IK rating | IK08 |
| Dimensions | Light head: 592.39 x 251.33 Panel: 880 x 743 |
| Optimal mounting height | 10m |
| Weight | Main body: 16.6kg Light head: 2.7kg |
| LED colour temp | 3000K in rainy weather 5700K in dry conditions |
| PIR sensor range | 120 degrees, 12m |
| Remote control | Optional |
| Suitable pole or spigot diameter | 60mm OD |

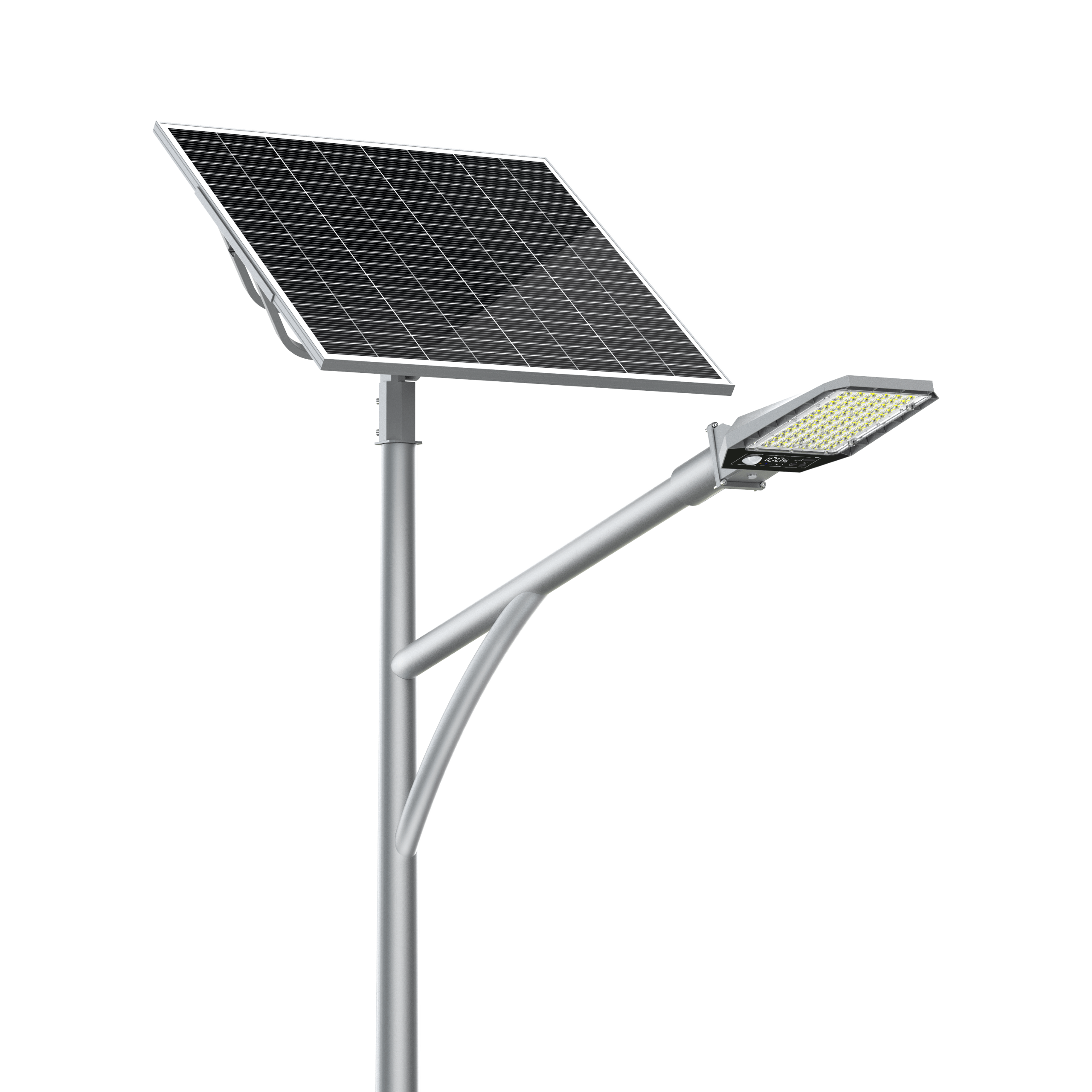

SPL-12K SPECS
| Lumens output | 12,000 Lumens |
| Efficiency | 230lm/W |
| Solar panels | Monocrystalline silicon, 22V/ 154W |
| Battery | 18V, 675Wh |
| Solar charging time | ≤ 5H |
| Charge life | 3+ days |
| Material | Aluminium + PC |
| IP rating | IP65 |
| IK rating | IK08 |
| Dimensions | Light head: 592.39 x 251.33 Panel: 880 x 880 |
| Optimal mounting height | 12m |
| Weight | Main body: 18.7kg Light head: 2.7kg |
| LED colour temp | 3000K in rainy weather 5700K in dry conditions |
| PIR sensor range | 120 degrees, 12m |
| Remote control | Optional |
| Suitable pole or spigot diameter | 60mm OD |

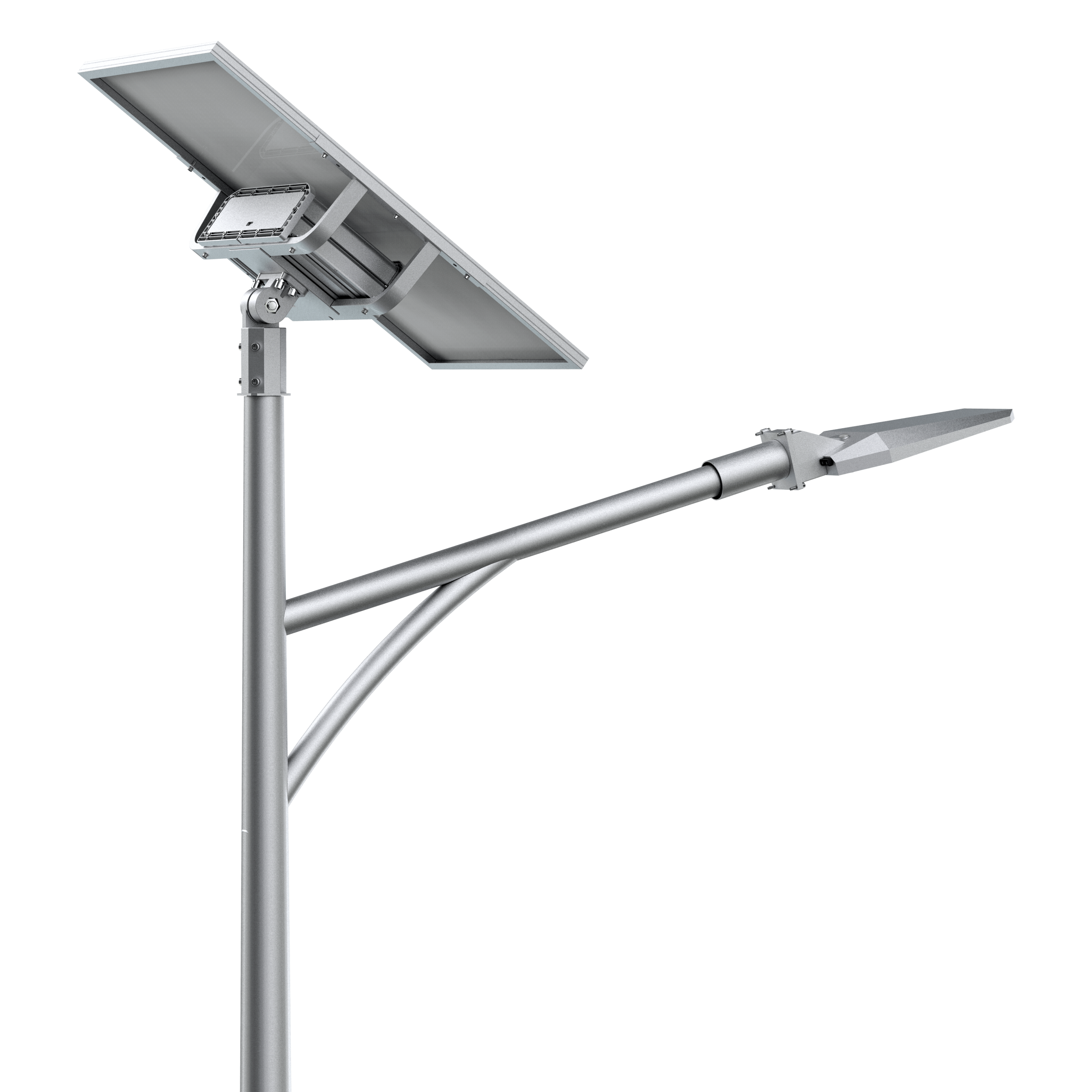

SPL-15K SPECS
| Lumens output | 15,000 Lumens |
| Efficiency | 230lm/W |
| Solar panels | Monocrystalline silicon, 22V/ 154W |
| Battery | 18V, 810Wh |
| Solar charging time | ≤ 6H |
| Charge life | 3+ days |
| Material | Aluminium + PC |
| IP rating | IP65 |
| IK rating | IK08 |
| Dimensions | Light head: 592.39 x 251.33 Panel: 880 x 880 |
| Optimal mounting height | 15m |
| Weight | Main body: 19.5kg Light head: 2.7kg |
| LED colour temp | 3000K in rainy weather 5700K in dry conditions |
| PIR sensor range | 120 degrees, 12m |
| Remote control | Optional |
| Suitable pole or spigot diameter | 60mm OD |
LIGHTING MODES
MODE 1: 30% brightness all night with 100% brightness PIR activated light.
MODE 2: 100% brightness for the first 5 hours of the night, then 25% brightness for the next 5 hours with 100% brightness PIR activated light, then 70% brightness until dawn.
MODE 3: 70% constant brightness from dusk until dawn.
PIR activated light duration: 30 seconds

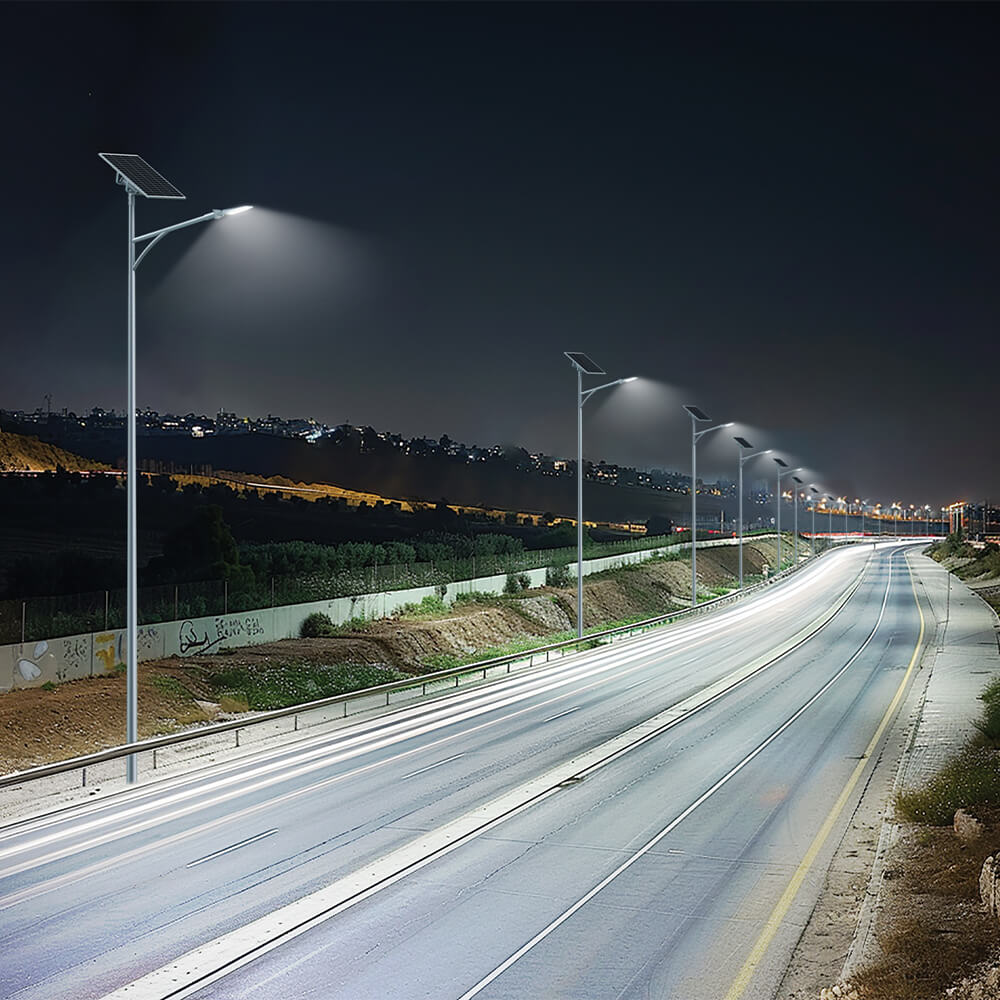

APPLICATIONS
- Driveway
- Carpark
- Roadway
- Pathway
SOLAR LIGHTING TECHNOLOGIES
ALS: Adaptive Lighting System
Innovative patented technology that automatically adjusts lighting levels according to surrounding weather conditions without impacting passer-by visibility. ALS maximises battery efficiency and life of charge (redundancy).
VFT: Variable Frequency Technology
Special Technology managing LED output thereby maximising battery charge life.
TCS: Temperature Control System
Provides critical battery control system to protect the battery from overheating thus maximising battery life and output.
PRODUCT CODES
SPL-6K, SPL-8K, SPL-10K, SPL-12K, and SPL-15K
| Weight | 4.11 kg |
|---|---|
| Dimensions | 106 × 21.4 cm |
| Lumens | 6,000, 8,000, 10,000, 12,000, 15,000 |
| Remote Control | Yes, No |
